Three-phase Asynchronous motor R80-Ca/4
(Equipment / Material)
Model Number: R80-Ca/4
Condition: New
Made in: Italy
Location or Storage Country: Italy
Service Engineering Support: Yes
Warranty: No
Price: Call for price
Description:
Three-phase asynchronous squirrel-cage motor from the R series, 4-pole (1500 rpm). The motor has an output of 3 kW, nominal torque of 20 Nm. The frame is made of extruded aluminium. Cooling method – IC411 (self-cooled). Protection class – IP54. The motor features sealed bearings and can be supplied in IP56/IP66 versions with labyrinth flange seals for operation in dusty and wet environments (e.g., stone processing machines). Various mounting configurations (B3, B5, B14) and terminal box positions (right or left) are available.
Overview:
| Power | 3 kW |
| Speed | 1400 rpm |
| Number of poles | 4 |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Current | 20 A |
| Efficiency | 77% |
| Power factor | 0.77 |
| Nominal torque | 20 Nm |
| Protection class | IP54 (optional IP56/IP66) |
| Cooling method | IC411 (self-cooled) |
| Frame material | Aluminium (extruded) |

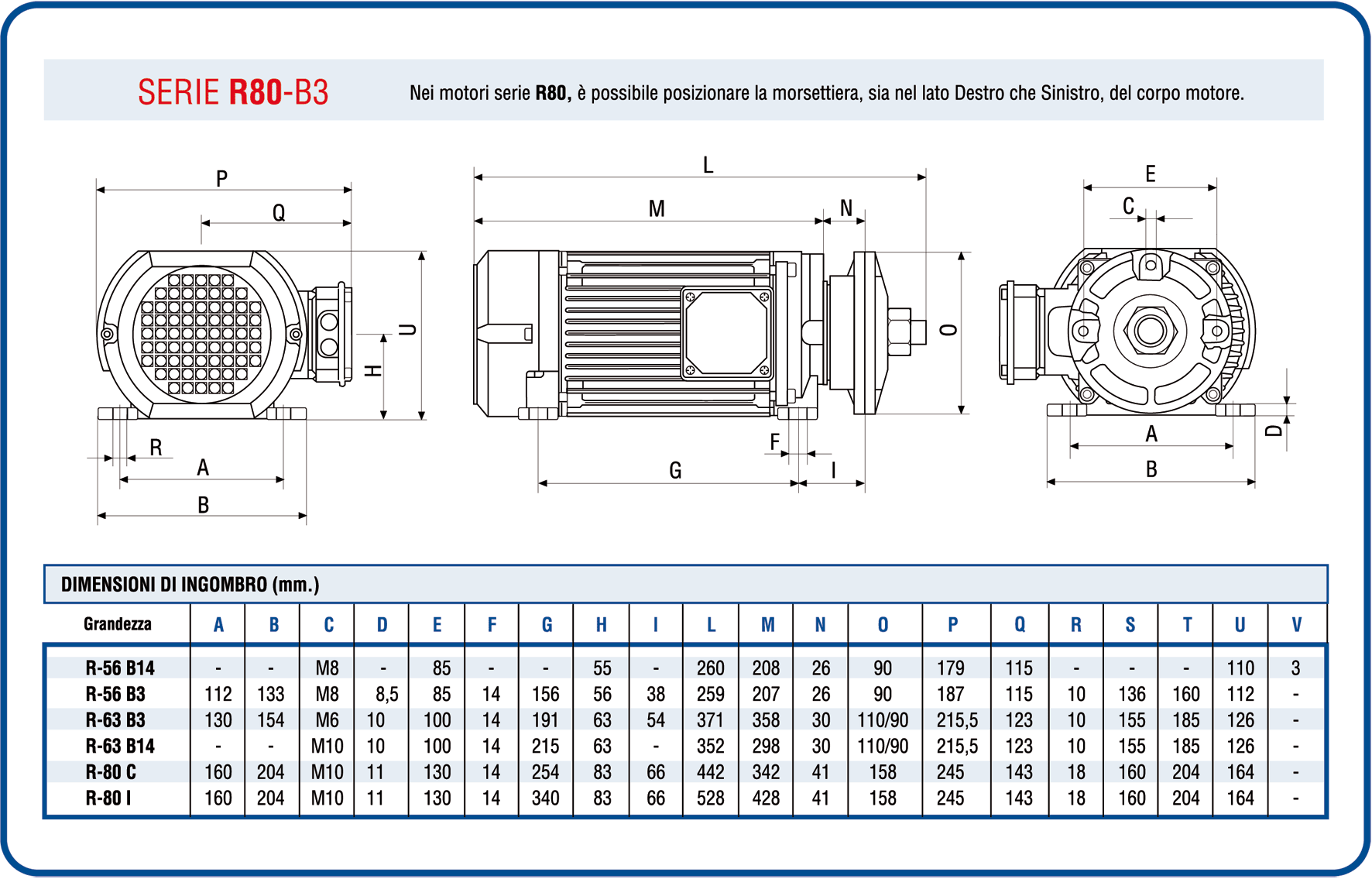

| Frame size | R80 |
| Mounting | B3, B5, B14 |
| Ambient temperature | Standard |
| Features | Sealed bearings, labyrinth flange seal (optional) |
Documentation:
CME Srl (Electric Motor Construction)
Locations: Via del Lavoro, 14, 40050 Argelato (BO), Italy
Main Products/Services: Three-phase and single-phase asynchronous motors, dual-polarity motors, inverter-duty motors, "E" series motors, "R" series motors.
Registration: Via del Lavoro, 14, 40050 Argelato (BO), Italy
