Add product
Product / Equipment

Side-dump truck "Agromaster-6512/10"

(Equipment / Material)
Side-dump truck "Agromaster-6512/10" Side-dump truck "Agromaster-6512/10" Side-dump truck "Agromaster-6512/10" Side-dump truck "Agromaster-6512/10"
Model Number: AGROMASTER-6512/10
Condition: New
Location or Storage Country: Russia
Service Engineering Support: Yes
Warranty: Yes
Price: Call for price
Description:
Purpose: Designed for transportation of general construction and agricultural cargo Equipped with add-on sides The body is sealed for transportation of bulk materials Adapted for work with front loaders - the height of the add-on side is reduced to 2800 mm using a removable insert
Overview:

Technical specifications:

«AGROMASTER-6512/10» «AGROMASTER-6512/14
Basic chassis Kamaz-65115 Kamaz-65115
Curb weight 9 300 9 600
Load capacity, kg 10,000 14,500
Gross weight, kg 19 300 24 100
- on the front axle 4 800 5 100
- on the rear bogie 14,500 19,000
Permissible trailer weight, kg 13,000 13,000
Gross weight of road train, kg 32 300 37,500
Platform volume, m3 19.2 20.3
Platform tilt angle, degrees 50 50

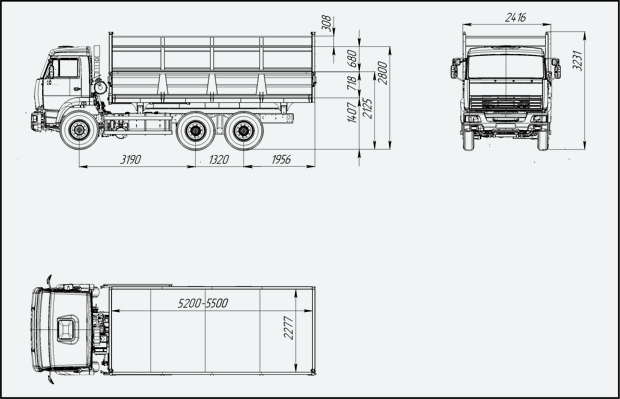

Internal dimensions of the body (LxWxH), mm 5200x2180x1700 5500x2180x1700
Height of sides, total 1,700 1,700
-main 720 720
- supernumerary 980 980
-general, without insertion 1,440 1,440
Direction of unloading on request on request
Engine power, hp 300 300
Maximum speed (min), km/h 90 90

Design features and advantages:

  • A dump truck with a strong and reliable body, sides and joints. The body design eliminates all the "weak" points of the bodies of the main manufacturers of dump trucks, which require repair and constant attention from the first day of operation
  • The body sides are made of high-quality steel sheet 2 mm thick.
  • Increased strength body base. Reinforced lifting cylinder basket
  • To facilitate opening and closing, the opening sides are equipped with torsion assistants. The main sides are held in the open position by chains. Reinforced locks
  • It has an increased body volume and increased height of the main and extension sides
  • For use with front loaders, it has a removable side extension insert.
Documentation:
Attached file #1
#самосвал #Боковой самосвал #Самосвал с боковой разгрузкой
Company Profile

LLC "PC "Agromaster"

Markets: РФ, СНГ
Main Products/Services: Seeding complexes, Tillage machinery, Dump trucks and trailers, Tractors
Registration: 423970, Republic of Tatarstan, Muslyumovsky district, Muslyumovo village, Tukaya street, zd. 33a
