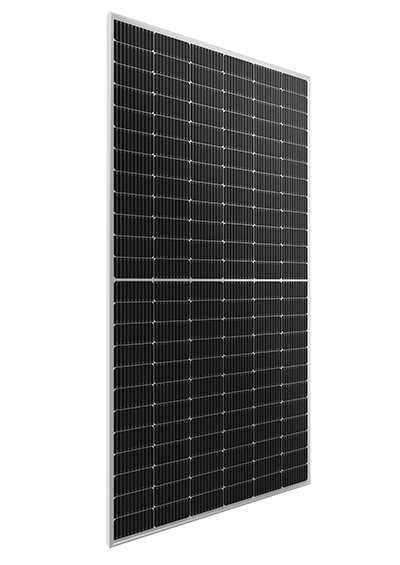

ET-M772Bh540-560Tw/Tb – High Efficiency PERC Bifacial Monocrystalline Solar Module
(Equipment / Material)
Condition: New
Made in: China
Location or Storage Country: China
Service Engineering Support: Yes
Warranty: Yes, 12 years product warranty; 30 years linear power warranty (84.95% of rated power after 30 years)
Price: Call for price
Description:
The ET-M772BH540-560TW/TB is a high-efficiency monocrystalline PERC solar module with bifacial technology. The module features half-cut cell structure to increase conversion efficiency and reduce mismatch loss. It is designed to withstand severe weather conditions, including wind load up to 2400 Pa and snow load up to 5400 Pa. The module has exceptional durability against salt mist and ammonia exposure. The rear side power gain can be up to 25% with bifacial technology, enhancing total energy yield.
Overview:
| Max Power (Pmax) | 540W – 560W |
| Open Circuit Voltage (Voc) | 49.60V – 50.20V |
| Short Circuit Current (Isc) | 13.86A – 14.14A |
| Max Power Voltage (Vmp) | 41.64V – 42.27V |
| Max Power Current (Imp) | 12.97A – 13.25A |
| Module Efficiency | 20.89% – 21.67% |
| NOCT (Nominal Operating Cell Temperature) | |
| Max Power (Pmax) | 405W – 421W |
| Open Circuit Voltage (Voc) | 46.28V – 46.44V |
| Short Circuit Current (Isc) | 11.46A – 11.78A |
| Max Power Voltage (Vmp) | 37.30V – 37.54V |
| Max Power Current (Imp) | 10.86A – 11.21A |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 2279×1134×35mm |
| Weight | 27.5 kg |
| Cell Type | P-Type Mono-crystalline (144pcs) |
| Front Glass | 3.2mm AR coating tempered glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 diodes |
| Connector | MC4 |
| Cable Cross-section | 4.0 mm² |
| Operating Conditions | |
| Max System Voltage | 1500V DC |
| Operating Temperature | -40℃ to +85℃ |
| Max Series Fuse | 30A |
| Mechanical Load | Front: 5400 Pa, Rear: 2400 Pa |
| Temperature Coefficients | |
| Pmax | -0.339%/℃ |
| Voc | -0.251%/℃ |
| Isc | +0.046%/℃ |
| NOCT | 45±2℃ |
Documentation:
EliTe Solar / Wuxi Elite Solar Power Holding Pte. Ltd.
Locations: 19F, Block C, Wanda Plaza, Jianye District, Nanjing, Jiangsu 210019, CN
Main Products/Services: High-efficiency PERC and TOPCon solar modules, including bifacial and half-cut cell technologies. Energy storage systems.
Year Established: 2005
